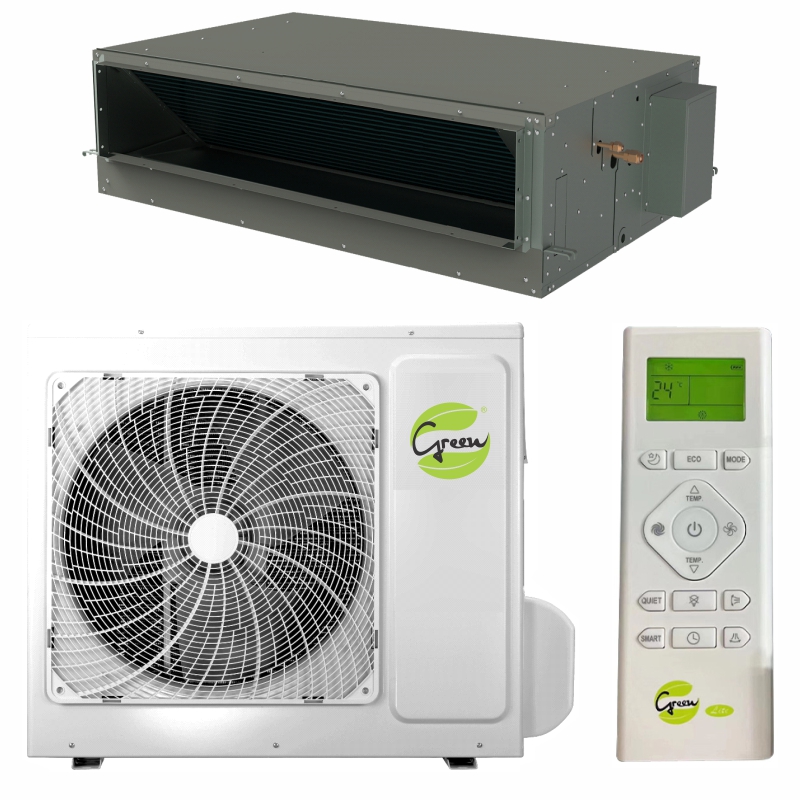

36,000 BTU/HR Ducted Split
Product Description
The 36,000 BTU Ducted Split from Green Air-Conditioning is best suited for office and industrial use. This aircon will work optimal in rooms and areas with a floor size of up to 60m². Our franchises, agents and dealers are all highly trained professionals and will also be able to assist you with the installation.
Feel free to request a quote or contact us for expert advise.
Specifications Summary
- Capacity: 36,000 BTU/HR
- Model: CM-D36NI
- Refrigerant Type: R410a
- H-Series
| Indoor Model | AUD-36HX4SHH2 | ||
| Electric Parameter | |||
| Power Supply | Indoor | V-ph-Hz | 220-240/1/50 |
| Outdoor | V-ph-Hz | 220-240/1/50 | |
| Input Consumption | Max | W | 4,800 |
| Input Current | Max | A | 24.0 |
| Cooling | |||
| Capacity | Nominal | Btu/h | 33,608 |
| W | 9,850 | ||
| Min - Max | W | N/A | |
| Input | Nominal | W | 3,070 |
| Current | A | 14.8 | |
| EER | W/W | 3.21 | |
| Heating | |||
| Capacity | Nominal | Btu/h | 34,120 |
| W | 10,000 | ||
| Min - Max | W | N/A | |
| Input | Nominal | W | 2,770 |
| Current | A | 13.8 | |
| COP | W/W | 3.61 | |
| Indoor Fan Motor | |||
| Model | Y7S423B814 | ||
| Quantity | 1 | ||
| Output | W | 209 | |
| Capacitor | μF | 10 | |
| Speed (Hi / Medium / Low) | r/min | 917 / 821 / 787 | |
| Indoor Coil | |||
| Number of Rows | 3 | ||
| Tube Pitch (a) x Row Pitch (b) | mm | 21 x 13.6 | |
| Fin Spacing | mm | 1.6 | |
| Fin Type | Hydrophilic Aluminium | ||
| Tube Outside Diameter & Type | mm | Φ7, Innergroove Tube | |
| Coil Length x Height x Width | mm | 1,000 x 378 x 40.8 | |
| Number of Circuits | 9 | ||
| Indoor Unit | |||
| Dimension | W x H x D | mm | 1,386 x 350 x 800 |
| Packaging | W x H x D | mm | 1,550 x 410 x 940 |
| Weight | Net / Gross | kg | 54.0 / 62.0 |
| Air Volume | Hi / Medium / Low | m³/h | 1,800 / 1,650 / 1,500 |
| CFM | 1,059 / 971 / 882 | ||
| Sound Level (SPL) | db(A) | 40 / 38 / 37 | |
| Sound Level (PWL) | Hi | db(A) | N/A |
| External Static Pressure | Rated | Pa | 37 + 10 |
| Range | Pa | 50 / 80 | |
| Controller | Type | Wired | |
| Model |
YXE-A03U(E) YXE-C01U1(E) YXE-C02U5(E)) |
||
| Drainage Water Pipe Diameter | mm | ODΦ32 | |
| Drain Pump | External Optional | ||
| Air Filter | Optional | ||
| Throttle Type | N/A | ||
| Booster Heater | kW | N/A | |
| Design Pressure | H/L | MPa | 4.4 / 1.60 |
| Room Temperature | |||
| Setting Temperature Range | Cooling | ℃ | 16~30 |
| Heating | ℃ | 16~30 | |
| Outdoor Model | AUW-36H4SD | ||
| Compressor | |||
| Model | ATH356MV-C9EUA | ||
| Type | Rotary | ||
| Brand | HIGHLY | ||
| Capacity | Btu/h | 29,172 | |
| Input | W | 2,950 | |
| Rated Current (RLA) | A | 14.1 | |
| Locked rotor Amp(LRA) | A | 67 | |
| Thermal protector position | Internal | ||
| Capacitor | μF | 55 | |
| Refrigerant Oil | Model | α68HES-H | |
| Amount | ml | 880 | |
| Outdoor Fan Motor | |||
| Model | Y6S696D511 | ||
| Quantity | 1 | ||
| Input | W | 160 | |
| Capacitor | μF | 6 | |
| Speed | r/min | 880 / 740 / 660 | |
| Outdoor Coil | |||
| Number of Rows | 2 | ||
| Tube Pitch (a) x Row Pitch (b) | mm | 21 x 18.19 | |
| Fin Spacing | mm | 1.6 | |
| Fin Type | Hydrophilic Aluminium | ||
| Tube Outside Diameter & Type | mm | Φ7, Innergroove Tube | |
| Coil Length x Height x Width | mm | 970 x 756 x 36.38 | |
| Number of Circuits | 5 | ||
| Outdoor Unit | |||
| Dimension | W x H x D | mm | 885 x 795 x 366 |
| Packaging | W x H x D | mm | 1,050 x 890 x 500 |
| Weight | Net / Gross | kg | 65 / 69 |
| Sound Level (SPL) | Hi | db(A) | 62 |
| Sound Level (PWL) | Hi | db(A) | N/A |
| Refrigerant | Type | R410A | |
| Amount | kg | 2.15 | |
| TCO2Eq | 4.489 | ||
| GWP | 2,088 | ||
| Throttle Type | Capillary | ||
| Design Pressure | H/L | MPa | 4.4 / 1.6 |
| Refrigerant Piping | |||
| Liquid / Gas | mm (inch) | Φ9.52 / Φ19.05 (3/8" / 3/4") | |
| Pipe Length | Max | m | 40 |
| Height Difference | Max (OD Lower) | m | 20 |
| Max (OD Heigher) | m | 20 | |
| ADD Refrigerant Amount | g/m | 35 | |
| Pipe Length For Additional Refrigerant | m | 5 | |
| Operating Range | |||
| Cooling | ℃ | -15~43 | |
| Heating | ℃ | -10~24 | |
| Ducting | |||
| Supply Air Size | mm | 1,210 x 220 | |
| Return Air Size | mm | 1,240 x 300 | |
